Mytho Pallet Wrapper A Column

Atlanta Stretch’s automatic section is committed to efficiency and high quality when it comes to wrapping. The Mytho A column pallet wrapper breaks standards and works with loads of up to 2000 kg. and European and American pallet wrapping. Its accessories make it an essential element in an end-of-line where speed and precision are essential.

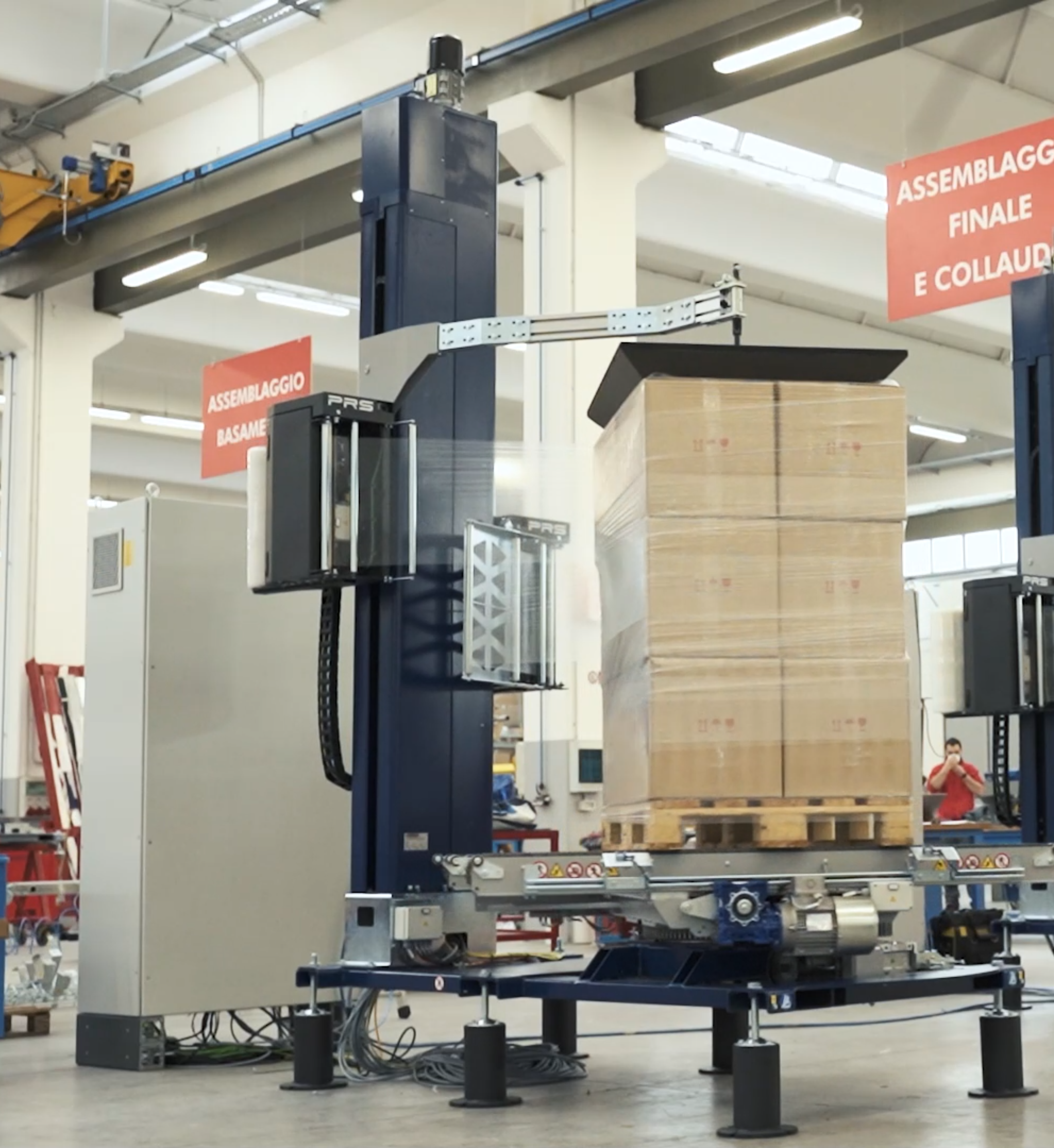

The column

The column of the Mytho A makes it durable and efficient. It is an element that extends to a height of 2.2 metres and a rotary table with maximum weights of up to 2000 kg. The column can be fitted with different heads depending on your needs: FE, PRS or PS. The Mytho A stands out not only for its column, but also for its dimensions. The column allows you to minimise wear and tear on the machine, which makes it a great candidate for adapting to any line, making it easy to adapt to different types of product and pallet.

Mytho Double: More production in less time

One of the keys to packing pallets is to do it faster. If you opt for the column model, the optional double carriage of the Mytho A makes it one of the best exponents of productivity. Here, more is more, and the double carriage allows for much faster wrapping. You can also equip it with the Mytho Station to perfect your end of line.

Unbeatable in its accessories

The Mytho A column pallet wrapper is automatic and has different systems designed for all cases. The stretch film sealing system can be self-regulating to fix the stretch film to the load. More grip? The cord system, which is also adjustable, allows you to ensure stability. On the other hand, the clamp and cutter ensure efficiency by cutting the film once the packaging is finished. The safety of the pallet is the most important thing, and for that we have the top cover, covering the top part in an airtight way. Or also in a system of corner protectors, which will protect your load until it reaches the customer.

Videos Catalogue Quotation

FULLY AUTOMATIC WRAPPING MACHINE.
INTUITIVE CONTROL PANEL.
NUMBER OF TURNS INDEPENDENTLY ADJUSTABLE REINFORCEMENT.
INPUT/OUTPUT ROLLER CONVEYOR.
AUTOMATIC PALLET HEIGHT DETECTION.
ADJUSTABLE SPEED ON THE PLATFORM.
EC SECURITY PROTECTIONS.
PROTECTIONS FOR FORKLIFT TRUCKS.
SECURITY FENCE WITH SECURITY GATE.
ADJUSTABLE TROLLEY SPEED UP/DOWN.
SOFT START SO AS NOT TO DUMP THE LOAD.
REINFORCEMENT LAPS IN THE MIDDLE OF THE PALLET.
ADJUSTABLE STRETCH PANEL (FE, PRS, PS).
START ENVELOPE CONCRETE HEIGHT.
FINISH ENVELOPE CONCRETE HEIGHT.
AUTOMATIC LANYARD DEVICE.
PANEL ADJUSTABLE TENSION (FE, PRS, PS).
READING FILM CONSUMPTION (PRS, PS).
SYSTEM WRAPPING DOORS AND WINDOWS.
AUTOMATIC SWITCH-OFF PROGRAM.
ALTIMETER FUNCTION (PHOTOCELL EXCLUSION).
99 DIFFERENT PROGRAMS TO SAVE.
INTEGRATED CUTTING AND WELDING UNIT.
CAPACITY 20 PALLETS/HOUR.

The column

Mytho Double: More production in less time

Unbeatable in its accessories

DOUBLE CART

The column format gives productivity and speed to palletizing. A version for those who want to increase their pallets per hour.

PALLET RETENTION PRESSER

The presser ensures that the pallet is fixed during packaging if your product is not stable.

CLAMPING AND CUTTING SYSTEM

Clamping and cutting system that intervenes in the final film wrapping. Adapted to macro-perforated stretch film.

STRETCH FILM SEALING SYSTEM

Self-adjusting stretch film sealing system for any pallet size.

CORD SYSTEM

Allows the height of the film to be reduced by forming a cord which ensures more effective load stability.

CORNER PROTECTORS

Automatic edge protection system that provides extra security for your loads. The system places the corner protectors autonomously, within the packaging cycle, to protect the product.

TOP COVER

Protecting the product with all the guarantees is our obsession. The Mytho A can incorporate a top cover system, the top cover. The system places a film on the top of the pallet just before packing begins, thus achieving a totally hermetic packaging that protects your loads. Ideal for products that are outdoors.
